Bloomberg | Phone | Entity Ownership
Anonymous User
2275
TreeBloombergPhone ScreeningInterview

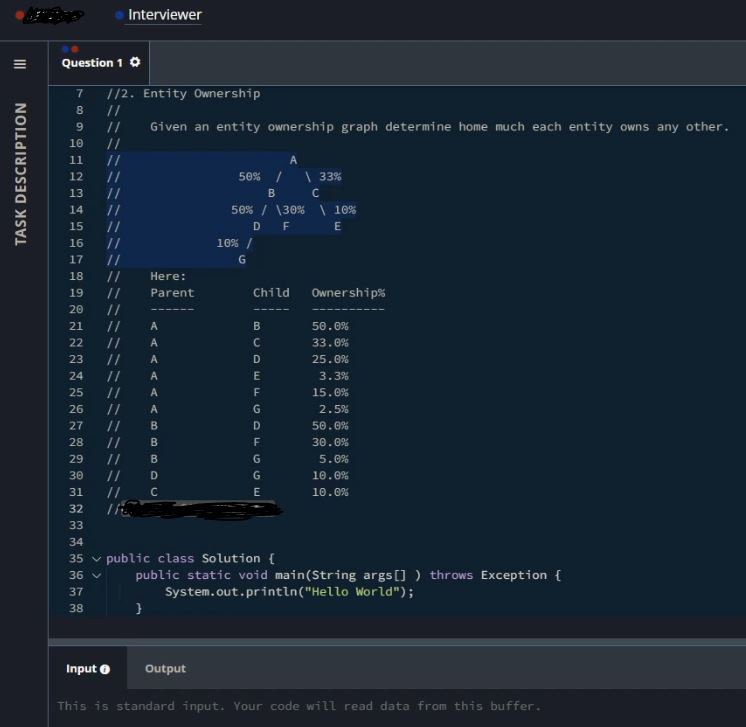

If the graph is given as illustrated in the highlighted section, how will you use it to draw the table below it which displays Parent, Child and their ownerships % mapped (Parent to Child).

Example :

Suppose initially A has 100
According to the figure A--B = 50 %, table shows A - B = 50 % (which is 50 % of A's 100)
then According to the figure B--D = 50 %, table shows A - D = 25 % (which is 50 % of B's 50)
then According to the figure D--G = 10 %, table shows A - G = 2.5 % (which is 10 % of D's 25)

that's what is shown in the table.
I started creating a TreeNode with the node name 'A' etc. and its percentage and left and right child. Interviewer was ok with that. You need to print the same table. Hope that help !

public class EntityOwnership {
	Node root;
	EntityOwnership(){
        root = null;
    }
	public static void main(String[] args) {
		EntityOwnership tree = new EntityOwnership();
        tree.root = new Node('A',100);
        tree.root.left = new Node('B',50);
        tree.root.right = new Node('C',33);
        tree.root.left.left = new Node('D',50);
        tree.root.left.right = new Node('F',30);
        tree.root.right.right = new Node('E',10);
        tree.root.left.left.left = new Node('G',10);
        Map<Character, List<Couple>> map = new HashMap<>();
        tree.bfs(tree.root,map);
	}
	public void bfs(Node temp,Map<Character, List<Couple>> map)
	{
		EntityOwnership tree = new EntityOwnership();
		Queue<Node> nodes = new LinkedList<>();
		Queue<Node> queue = new LinkedList<>();

		nodes.add(temp);
		queue.add(temp);

		while(!queue.isEmpty())
		{
			int size = queue.size();
			for(int i=0;i<size;i++)
			{
				Node parent = queue.poll();

				if(parent.left!=null)
				{
					nodes.add(parent.left);
					queue.add(parent.left);
				}
				if(parent.right!=null)
				{
					nodes.add(parent.right);
					queue.add(parent.right);
				}
			}
		}

		for(Node node : nodes)
		{
			Node root_node = node;
			char root_letter = node.key;

			tree.dfs(root_letter,root_node.left,100.0,map);
			tree.dfs(root_letter,root_node.right,100.0,map);
		}

		for(Map.Entry<Character, List<Couple>> map1 : map.entrySet())
		{
			char ch = map1.getKey();
			List<Couple> list = map1.getValue();
			for(Couple c : list)
			{
				System.out.println(ch + "  "+ c.x + " " + c.y);
			}
		}
	}
	public void dfs(char root_letter,Node root_node,double val,Map<Character, List<Couple>> map)
	{
		if(root_node==null)
			return;

		double new_val = root_node.percent * val * 0.01 ;

		if(map.containsKey(root_letter))
			map.get(root_letter).add(new Couple(root_node.key,new_val));
		else
		{
			map.put(root_letter,new ArrayList<>());
			map.get(root_letter).add(new Couple(root_node.key,new_val));
		}

		if(root_node.left!=null)
			dfs(root_letter,root_node.left,new_val,map);

		if(root_node.right!=null)
			dfs(root_letter,root_node.right,new_val,map);
	}
}
class Node{
    char key;
    Node left, right;
    double percent;
    public Node(char item,int percentage) {
        key = item;
        left = right = null;
        percent = percentage;
    }
}
class Couple{
	char x;
	double y;
	public Couple(char key, double new_val) {
		x = key;
		y = new_val;
	}
}
